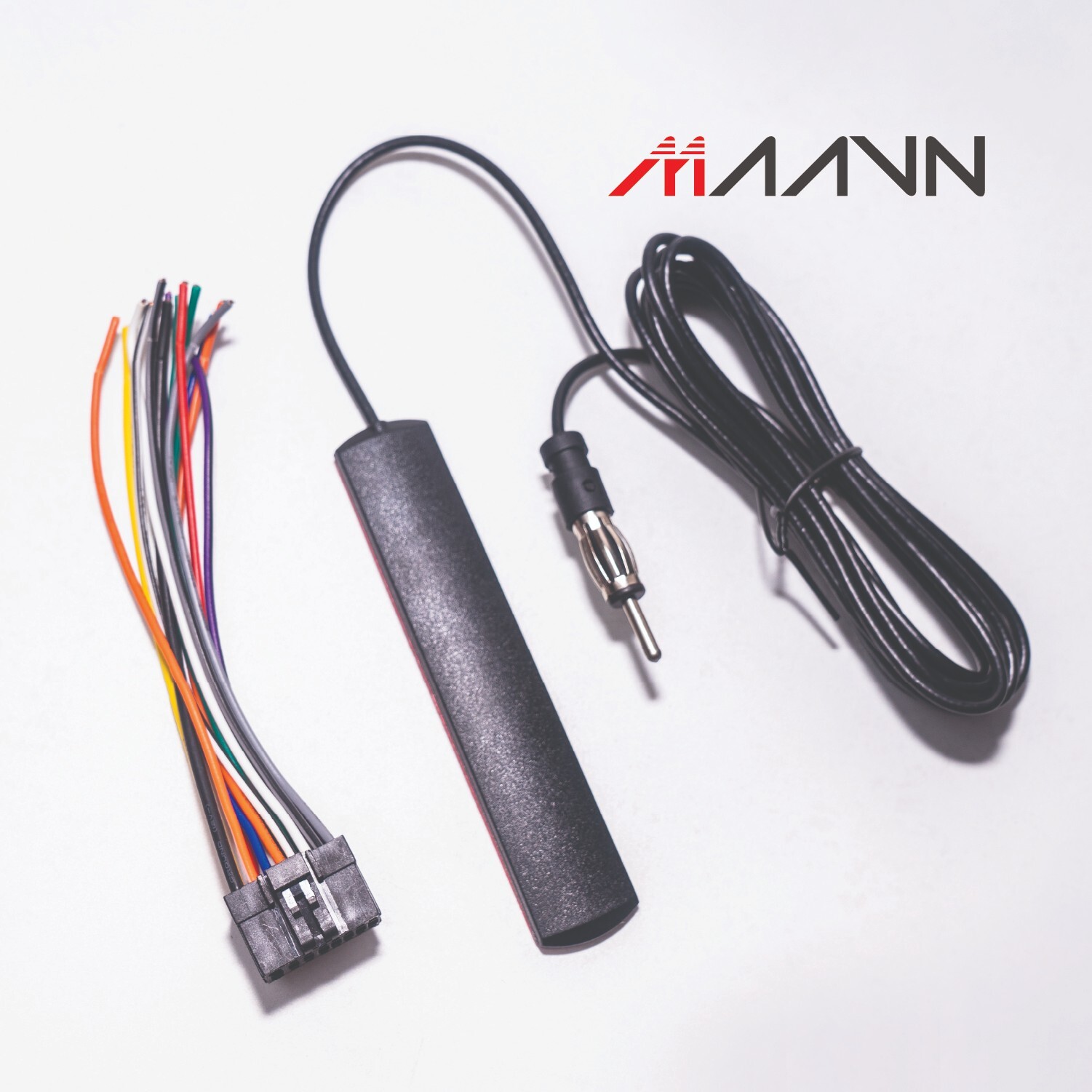

Wiring Harness For Pioneer Car Stereo
Cd Dvd Radio Cable W Antenna Aftermarket
USD $8.99
Condition : New
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!
Pioneer Wiring Harness With Antenna
For AfterMarket car stereo Radio, CD/DVD player.
Compatible for most of Pioneer car Radio/CD/DVD player.
CONNECTION PINs:Power:
Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Control:Orange – Dash Light Dimmer/IlluminationBlue - Auto Antenna Control or Subwoofer/Amplifier Control
Speaker:
Green – Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)
Additional Notes:
This wiring harness may not include all wire colors listed above.
Will not retain Steering Wheel Controls.
For AfterMarket car stereo Radio, CD/DVD player.
Compatible for most of Pioneer car Radio/CD/DVD player.
CONNECTION PINs:Power:
Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Control:Orange – Dash Light Dimmer/IlluminationBlue - Auto Antenna Control or Subwoofer/Amplifier Control
Speaker:
Green – Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)
Additional Notes:
This wiring harness may not include all wire colors listed above.
Will not retain Steering Wheel Controls.
